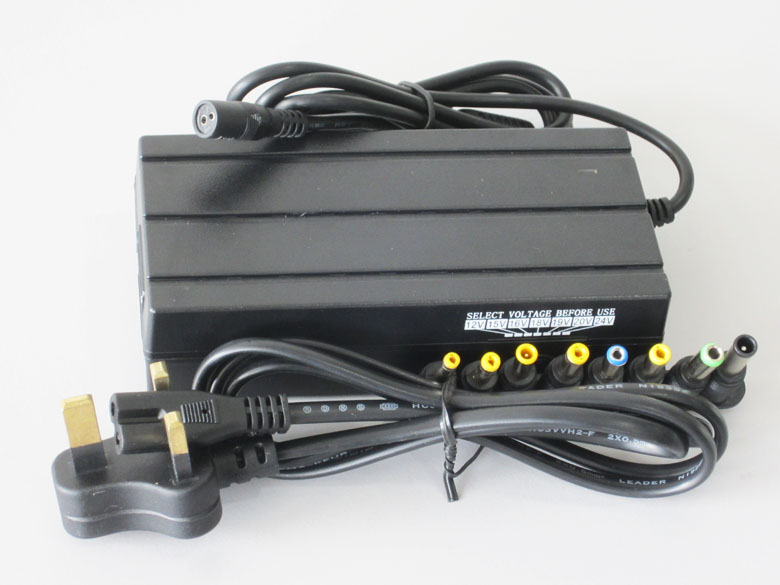

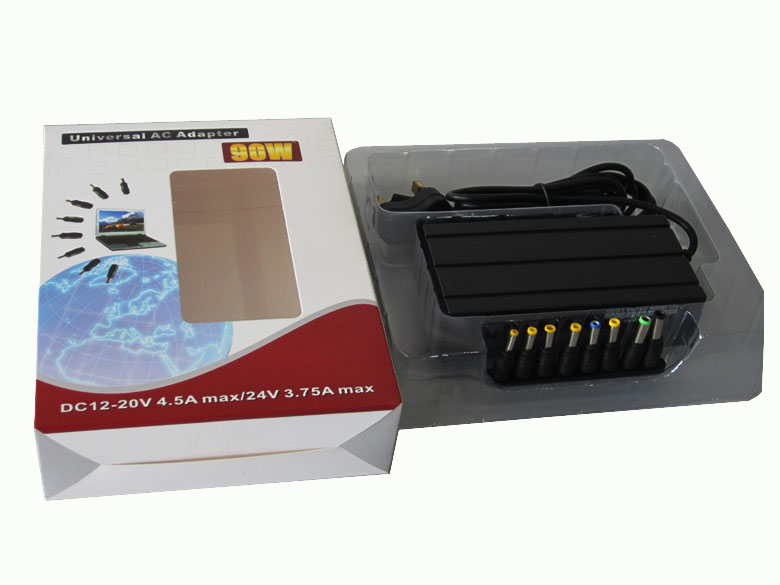

This model is an universal switching-model power supply for laptop, operation at input AC 100V to 260V ~ 47-63Hz, output: USB port:5V 1A max. DC 7 voltages: 12V/15V/16V/18V/19V/20V 4.5A, 24V 3.75A, output power 90 Watt max, with protection functions: overload protection, short circuit protection, power supply by main supply. With 8 pcse tip connector to suit most laptops, select output voltage to suit to laptop and make sure the polarity of tips connect correct before use.

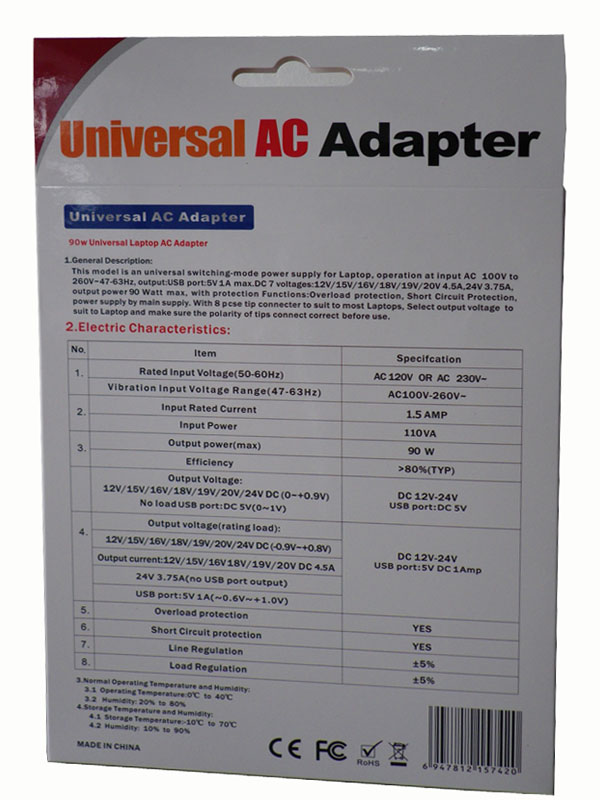

| Rated Input Voltage (50-60Hz) | AC 120V or AC 230V~ |
| Vibration Input Voltage Range (47-63Hz) | AC100V-260V~ |
| Input Rated Current | 1.5 AMP |
| Input Power | 110VA |
| Output power (max) | 90 W |
| Efficiency | >80%(TYP) |
Output Voltage:
12V/15V/16V/18V/19V/20V/24V DC (0~+0.9V)
No load USB port: DC 5V (0~1V) | DC 12V-24V
USB port: DC 5V |
| Output voltage (rating load): | DC 12V-24V
USB port: 5V DC 1Amp |
| 12V/15V/16V/18V/19V/20V/24V DC (-0.9v~+0.8V) |
| Output current: 12V/15V/16V/18V/19V/20V DC4.5A |
| 24V 3.75A (no USB port output) |
| USB port: 5V 1A (~0.6V~+1.0V) |
| Overload protection | YES |
| Short Circuit protection | YES |
| Line Regulation | ±5% |
| Load Regulation | ±5% |
